Glock Factory Case insert.

You can design a 3D-printable replacement insert for the Glock factory case in your browser and export it as an STL. The insert follows the case’s shaped outline at 266 × 222 mm, and it is only 26 mm deep. It needs two pieces on a 256 mm build plate.

By Noel Tock · ·

Insert
266 × 222 mm
Depth
26 mm
Files
1 STL
On a 256 mm plate
2+ pieces

What fits

These layouts use the designer’s own case outline and gear models, drawn to scale. The dashed line is the wall clearance: the designer keeps every item inside it.

265 mm221 mm
G19 Gen5 MOS with RMR, X300 and two magazines. Contents: G19 Gen5 MOS Compact, Trijicon RMR (RM06/RM07), Surefire X300T-B, G19 Mag ×2, Black Trident Basepad +2 ×2. Every item sits at least 5 mm from the walls and from each other. A 2D layout check, not a print test.

See every supported gear profile. A profile in the library is not proof that a combination fits; the designer checks placement as you go.

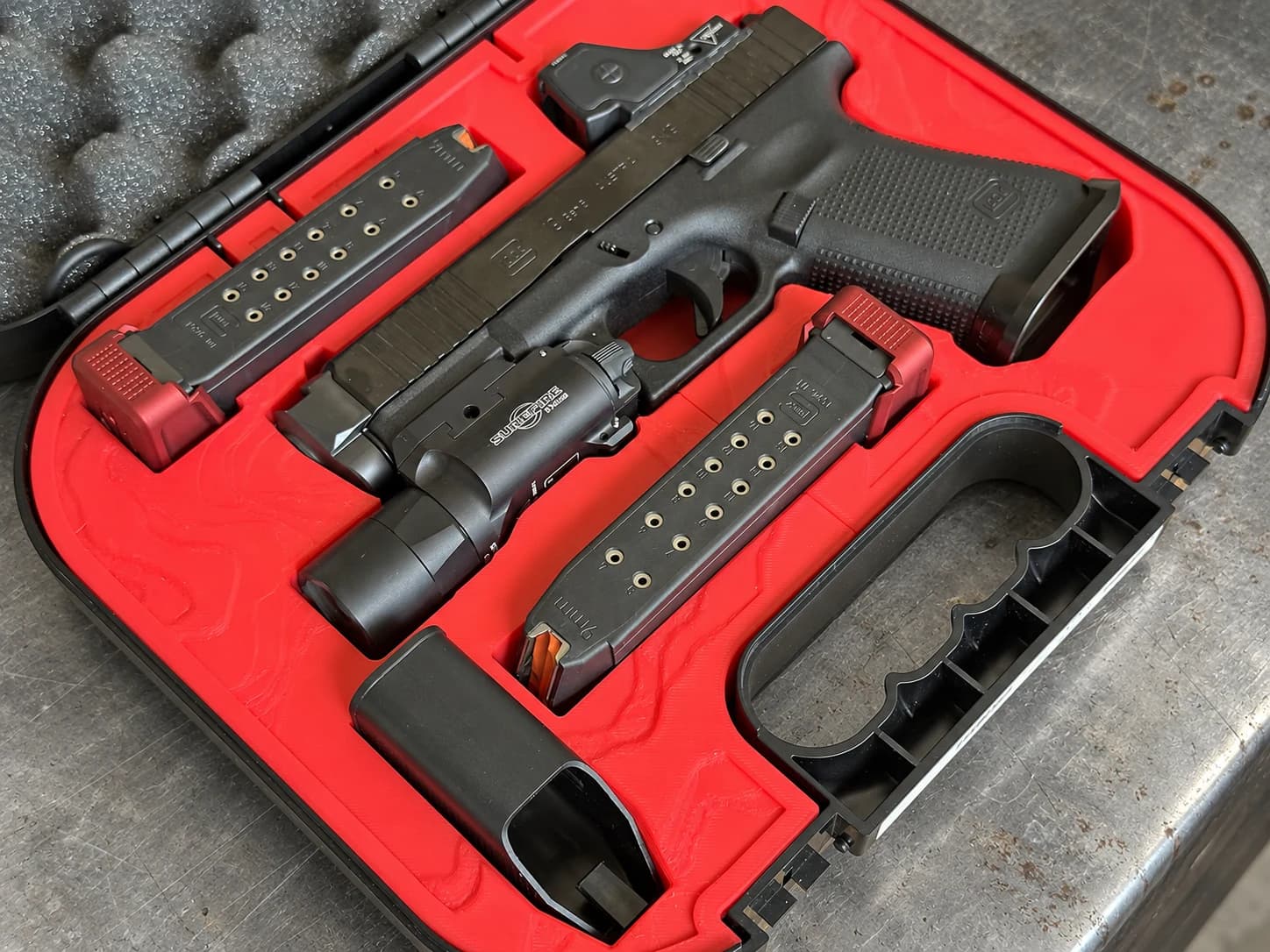

A 3D-printed red insert in a Glock factory case holding a Glock 19 with a red-dot optic and a Surefire light, two magazines with red basepads, and a spare part
A printed insert in the Glock factory case, designed in StashGrid. This is the one physical print we have photographed so far; measured fit results are not published yet.

A shallow, shaped insert

This profile follows the factory case outline rather than a plain rectangle. The 26 mm depth is the real constraint: it is half the depth of the other two cases, so thick accessories and stacked items have less room.

Choosing a Glock profile doesn’t guarantee every configuration fits this case. Check the exported geometry, especially with a weapon light attached.

Printing it

At 266 mm wide, the insert is 10 mm too wide for a 256 mm Bambu Lab plate, and no rotation fixes that. It fits in one piece on a larger printer such as the Creality K2 Plus. On anything smaller, split it once and keep the seam clear of the pistol pocket.

The printing guide covers the split and a test joint.

  • Bambu Lab A1 mini

    180 × 180 mm

    Split into 4+ pieces

  • Creality Ender-3 V3 SE

    220 × 220 mm

    Split into 4+ pieces

  • Prusa MK4S

    250 × 210 mm

    Split into 2+ pieces

  • Bambu Lab P1S, X1C, A1

    256 × 256 mm

    Split into 2+ pieces

  • Creality K2 Plus

    350 × 350 mm

    Fits in one piece

The 265 mm × 221 mm insert outline to scale on each printer’s published build plate. The dashed line is the plate; red is the part that hangs off. Rotation was checked in half-degree steps. Piece counts assume straight cuts; brims and keep-out zones make the usable area smaller.

The factory layout

The factory case is laid out for what ships in the box. Add a light, an optic or more magazines and the stock layout stops helping. A printed insert lets you lay the case out around what you actually carry, and print it again when that changes.

A printed insert is one of several ways out. Compare the alternatives to pick-and-pluck foam, including made-to-order foam and modular grids.

Check your model before you print

This profile matches the current Glock factory case outline used by the designer. Older Glock cases and third-party pistol cases differ; check your case against the dimensions above before you print.

The dimensions describe the digital insert, not a measured fit tolerance. We haven’t published fit tests yet, so print a small section first. How the designer computes fit.

Design your Glock Factory Case insert

Open the designer, choose Glock Factory Case from the case menu, and start arranging. Your layout saves in this browser as you go.

Open the designer
